Controller

CRC140

  • Weather compensating controller
  • Return temperature protection
  • Set the perfect heat curve according to your need
  • Controller with integrated actuator
The ESBE series CRC140 is a combined weather compensating and return temperature controller with integrated actuator made especially for applications with a heat circuit, 4-way valve and boiler without storage tank. The controller is designed to provide a high level of comfort thanks to the possibility to set a perfect characteristic heating curve and at the same time protect the boiler from too low or too high return temperature. The compact controller is designed for operating rotary valves DN 15-50 and has an operating range of 90°.
Product range

CRC14x

Installation dimensions for Controller Series CRx1x0 with ESBE VRG100, VRG200, VRG300, VRH100 and VRB100 mixing valves
Art.no. Reference Voltage [V AC] Torque [Nm] Weight [kg]
12824100 CRC141 230 6 1,0
Installation support

How to mount ESBE Controller on ESBE valve

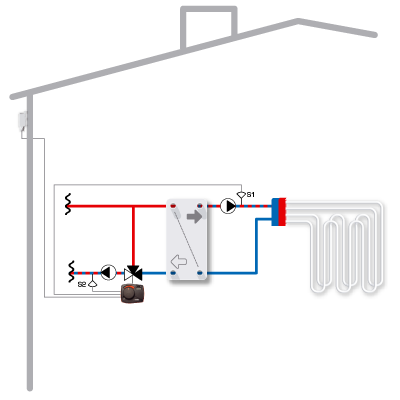

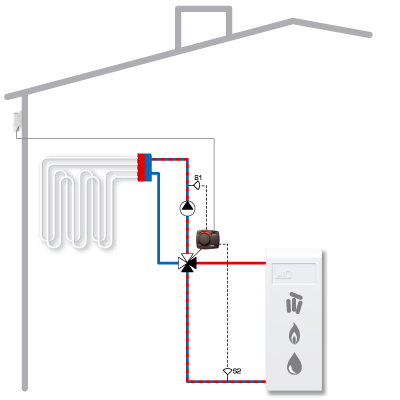

Installation examples

Installation examples
1
2
3
Technical data

Technical data

Sensors: Temperature sensor type NTC
Enclosure rating: IP41
Protection class: II
Power supply: 230 ± 10% V AC, 50 Hz
Power consumption: 10 VA
Torque: 6 Nm
ERP temperature controls class: III
Energy efficiency contribution: 1,5 %
Running time at max. speed: 30 s
Supplied parts: • Actuator unit with two pre-assembled flow pipe sensors
• Adaptor kit for ESBE valves VRG, VRB, VRH and MG, G, F, BIV, H, HG
• Outdoor sensor with 20 meter cable
• 230V AC transformer with European plug
Ambient temperature, max.: +55 °C
Ambient temperature, min.: -5 °C
Temperature range - Flow pipe sensor S1 and S2: +5 to +95 °C
Temperature range - Outdoor sensor: -50 to +70 °C

Conformity

Conformity
LVD 2014/35/EU
EMC 2014/30/EU
RoHS 2011/65/EU

Wiring

Please see Installation instruction
Accessories and Spare Parts

Adaptor Kits

Art No. Reference Designation Description Note Instruction manual
16000500 16000500 ARA803 ESBE ARA803 Adaptor kit ESBE valves series VRx, MG, G, F, BIV, H, HG. ESBE ARA803 Adaptor kit ESBE valves series VRx, MG, G, F, BIV, H, HG. Series ARA600, CRA110, CRA140, CRA150, CRB100, CRC110, CRC140, CRD120, CRS130. Comes with the actuator or Controller. download
16000800 16000800 ARA806 ESBE ARA806 Adaptor kit Honeywell Centra Corona valves, series V5433A, V5433G, V5442A, V5442G. ESBE ARA806 Adaptor kit Honeywell Centra Corona valves, series V5433A, V5433G, V5442A, V5442G. Series ARA600, CRA110, CRA140, CRA150, CRB100, CRC110, CRC140, CRD120, CRS130. Order separately. download
16000900 16000900 ARA808 ESBE ARA808 Adaptor kit Lovato valves. ESBE ARA808 Adaptor kit Lovato valves. Series ARA600, CRA110, CRA140, CRA150, CRB100, CRC110, CRC140, CRD120, CRS130. Order separately. download
16000600 16000600 ARA805 ESBE ARA805 Adaptor kit Meibes valves. ESBE ARA808 Adaptor kit Meibes valves. Series ARA600, CRA110, CRA140, CRA150, CRB100, CRC110, CRC140, CRD120, CRS130. Order separately. download
16001000 16001000 ARA809 ESBE ARA809 Adaptor kit PAW valves. ESBE ARA809 Adaptor kit PAW valves. Series ARA600, CRA110, CRA140, CRA150, CRB100, CRC110, CRC140, CRD120, CRS130. Order separately. download
16000700 16000700 ARA807 ESBE ARA807 Adaptor kit Watts valves. ESBE ARA807 Adaptor kit Watts valves. Series ARA600, CRA110, CRA140, CRA150, CRB100, CRC110, CRC140, CRD120, CRS130. Order separately. download
16001100 16001100 ARA810 ESBE ARA810 Adaptor kit WITA valves Minimix, Maximix, H10, H9GG, H9MS. ESBE ARA810 Adaptor kit WITA valves. Series ARA600, CRA110, CRA140, CRA150, CRB100, CRC110, CRC140, CRD120, CRS130. Order separately. download

Spare parts

Art No. Reference Designation Description Note Instruction manual
17055700 17055700 CRB914 ESBE CRB914 Communication cable, 20m Communication cable CRB914, 20m. download
17056000 17056000 CRC911 ESBE CRC911 Outdoor sensor Outdoor sensor CRC911 download
17053300 17053300 CRA912 ESBE CRA912 Voltage adaptor, 230V — 24V Voltage adaptor CRA912, 230V — 24V. download

Options

Art No. Reference Designation Description Note Instruction manual
16200700 16200700 ARA801 ESBE ARA801 Auxiliary switch kit ARA600. ESBE ARA801 Auxiliary switch kit ARA600. download
17053100 17053100 CRA911 ESBE CRA911 Flow pipe sensor, 5m cable. ESBE CRA911 Flow pipe sensor, 5m cable. download
Download area

Download area

Type Preview Download
Data sheet CRC140 download
Installation instruction CRC140 - Assembly download
Installation instruction CRC140 - Settings download
Certificate Declaration of Conformity CRC140 download
Certificate Building Product Declaration BPD3 download
Declaration ErP Declaration download
Image CRC141, high res download
2D Image CRC140 download
3D drawing (stp file) CRC140 download
3D drawing (stp file) CRC911 Outdoor sensor download
