Actuator
ARD100, ARD200
- Spring return actuator for failsafe operation
- Perfect match between the actuator and ESBE valves 3F/4F
- Comes with adapter for clamp coupling for spindle assembly
- Different control signals available
The ESBE series ARD100 and ARD200 are a range of actuators suitable for both rotary mixing valves as well as damper applications.
The ARD100 is suitable to work with ESBE valves up to DN80, and with damper sizes up to 2m2. Thanks to the high torque ARD200 is suitable to work with the largest ESBE valve DN100-150, and with dampers sizes up to 4m2. The actuator comes with 2 sets of adapters; one set for assembly on ESBE valves 3F/4F, and one set with clamp coupling for damper spindle assembly.
Product range
ARD1xx

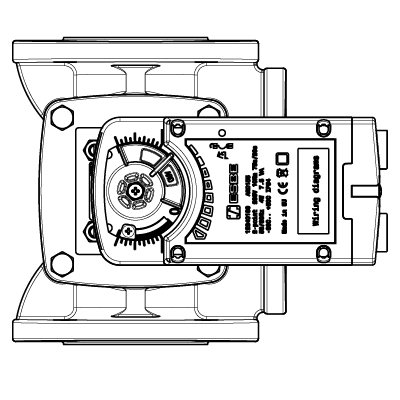

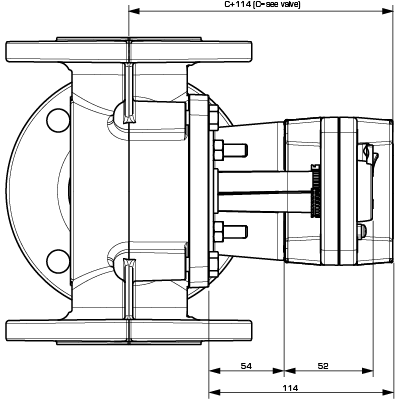

| Art.no. | Reference | Voltage [V AC/DC] | Running time, opening 90° [s] | Running time, closing 90° [s] | Control signal | Torque [Nm] | A [mm] | B [mm] | C [mm] | D [mm] |
| 12240100 | ARD155 | 230 | 75 | 20 | 2-point | 10 | 42 | 48 | 60 | 68 |
| 12241100 | ARD157 | 24 | 75 | 20 | 2-point | 10 | 42 | 48 | 60 | 68 |
| 12260100 | ARD169 | 24 | 150 | 20 | Proportional | 10 | 42 | 48 | 60 | 68 |
ARD2xx
| Art.no. | Reference | Voltage [V AC/DC] | Running time, opening 90° [s] | Running time, closing 90° [s] | Control signal | Torque [Nm] | A [mm] | B [mm] | C [mm] | D [mm] |
| 12240200 | ARD255 | 230 | 75 | 20 | 2-point | 20 | 47 | 53 | 70 | 73 |
| 12241200 | ARD257 | 24 | 75 | 20 | 2-point | 20 | 47 | 53 | 70 | 73 |
| 12260200 | ARD269 | 24 | 150 | 20 | Proportional | 20 | 47 | 53 | 70 | 73 |
Installation support
Mounting positions
Technical data
Technical data
| Ambient humidity: | 5...95% r.H. non-condensating |
| Power supply: | 24 V AC (50/60 Hz), 24 V DC; 230 V AC (50/60 Hz), 230 V DC |
| Nominal voltage range: | 19...29 V AC/DC; 85...265 V AC/DC |
| Power consumption: | Running - 24V: ARD100: 5 W/ARD200: 10,5 W; Running - 230V: ARD100: 5,5 W/ARD200: 10,5 W; Standby - 24V: ARD100: 2 W/ARD200: 2,5 W; Standby - 230V: ARD100: 1,5 W/ARD200: 2 W |
| Wiring sizing: | 24V: ARD100: 8,0 VA / ARD200: 14 VA; 230V: ARD100: 11,5 VA / ARD200: 22,5 VA |
| Enclosure rating: | IP54 |
| Protection class: | 24V: III; 230V: II |
| Torque: | ARD100: 10 Nm; ARD200: 20 Nm |
| Running time: | Opening - 2-point: 75s/90°; Opening - proportional: 150s/90°; Closing: 20s/90° |
| Cable length: | 1 m |
| Weight: | ARD100: 1,8 kg; ARD200: 2,4 kg |
| Ambient temperature, max.: | +50 °C |
| Ambient temperature, min.: | -30 °C |
EMC 2014/30/EU
RoHS 2011/65/EU
Wiring
Accessories and Spare Parts
Adaptor Kits
| Art No. | Reference | Designation | Description | Note | Instruction manual | |
 |
13905200 | VBF802 | ESBE VBF802 Adaptor kit ESBE valves series VBF100 - actuator series ARCx00, ARDx00 | Adaptor kit VBF802 ESBE valves series VBF100 - actuator series ARCx00, ARDx00 | Series ARCx00, ARDx00. Order separately. |  |
Download area
Download area
| Type | Preview | Download |
| Data sheet | ARD100 |
|
| Data sheet | ARD200 |
|
| Installation instruction | ARDx00, Electric settings |
|
| Installation instruction | ARDx00, Valve assembly |
|
| Installation instruction | ARDx00, Damper assembly |
|
| Certificate | Declaration of Conformity ARD100, ARD200 |
|
| Certificate | Building Product Declaration BPD3 |
|
| Certificate | EAC certificate (RU), 230V |
|
| Certificate | EAC certificate (RU), 12-24V |
|
| Image | ARD100/ARD200, high res |
|
| 2D Image | ARD100, ARD200 |
|
