ESBE Group contributes to energy efficiency

APPLICATIONS

Filter
SOLAR 1

Thermosyphon system together with additional boiler

Products

VMC300
SOLAR 2

Termosifonový system together with additional boiler with adjustable diverting temperature.

Products

VMD300
SOLAR 3

Solar system with loading on 2 levels into the storage tank.


Products

VTD300
SOLAR 4

Solar system with loading on 3 levels into the storage tank!

SOLAR 5

Solar system with loading on 4 levels into the storage tank.

Products

90 Proportional
SOLAR 6

Termosifonový system together with a valve combination.

Products

VMB400, VMB500
SOLAR 7

Solar system with additional backup for domestic hot water system.

Products

VTA320, VTA520
SOLAR 8

Solar system with additional backup for domestic hot water system.

Products

VMC300
SOLAR 9

Solar system with maximum use of the stratification in the storage tank.

SOLAR 10

Larger solar systems with prioritized storage tank loading.

Products

VZC, VZD
HVAC 1

Heating systems with 2 way regulation and variable flow.

HVAC 2

Heating systems with 2 way regulation and local circulating pump.

HVAC 3

Heating system with 3-way regulation.

HVAC 4

Heating system with 3-way regulation and local circulating pump.

HVAC 5

Heating system with 3-way regulation and local circulating pump.

HVAC 6

Heating system with 3-way regulation and local circulating pump.

Products

VLA100 VLE100 ALB100
HVAC 7

Heating systems with 2 way regulation and local circulating pump.

Products

VLA100 VLE100 ALB100
HVAC 8

Heating system with 3-way regulation.

Products

VLA100 VLE100 ALB100
HVAC 9

Heating system with 3-way regulation and local circulating pump.

Products

VLA100 VLE100 ALB100
HVAC 10

Heating system with 3-way regulation and local circulating pump.

Products

VLA100 VLE100 ALB100
HVAC 11

Circulation unit with mixing valve together with actuator to control heating systems.

Products

GRA200, GRA300
HVAC 12

Air handling system with purpose of controlling flow temperature to heating/cooling appliances.

Products

VRC260
HEAT PUMP 1

Heat pump with heating circuit and domestic hot water tank.

HEAT PUMP 2

Heat pump with higher flow requirements.

HEAT PUMP 3

Heat pump with high flow requirements.

HEAT PUMP 4

Heat pump application with additional heat source as backup.

Products

VZC, VZD
HEAT PUMP 5

Heat pump applications with rotary valve and controller.

Products

VRB140 90C

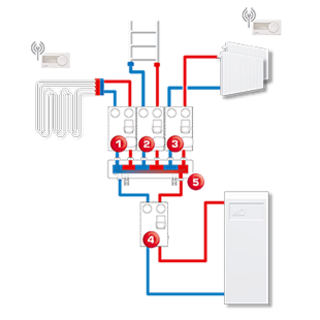

HEAT PUMP 7

Heat pump application with Circulation units designed for heating circuits where control by weather or indoor / outdoor temperature and pump control is required.

SOLID FUEL 1

Efficient storage tank loading.

Products

LTC300
SOLID FUEL 2

Efficient storage tank loading with circulation pump of own choise.

Products

VTC300 VTC500 ATA200
SOLID FUEL 3

Efficient storage tank loading with eletrical controller.


Products

VRG130 CRA200
SOLID FUEL 4

Efficient and fast storage tank loading with eletrical controller.

Products

VRB140 CRA200
SOLID FUEL 5

Efficient storage tank loading with available safety equipment.

Products

LTC300 ATA200 CTF150
SOLID FUEL 6

Solid fuel application with back-up heat soruce.

Products

VTC500 VRB140 90C
SOLID FUEL 7

Complete solid fuel application with domestic hot water and solar system.

SOLID FUEL 8

Circulation unit with bivalent valve together with actuator for solid fuel application.

Products

GBA200

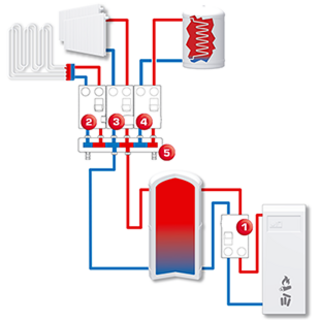

SOLID FUEL 11

Return temperature unit designed for solid fuel applications, where a return temperature control is required.

SOLID FUEL 12

Return temperature unit designed for solid fuel applications, where a return temperature control is required.

OIL AND GAS 1

Valve-controlled radiator circuit.

Products

VRG130 CRB200
OIL AND GAS 2

Valve-controlled radiator circuit with raised return temperature.

Products

VRG140 CRB200 90C
OIL AND GAS 3

Modulating heatsource with radiator circuit and independent underfloor heating.

Products

VTA370, VTA570
OIL AND GAS 4

Radiator circuit together with one under floor heating zone.

OIL AND GAS 5

Radiator circuit with multiple under floor heating zones.

OIL AND GAS 6

Thermosyphon system together with additional boiler.

Products

VMC300
OIL AND GAS 7

Thermosyphon system together with additional boiler with adjustable diverting temperature.

Products

VMD300
OIL AND GAS 8

Solid fuel system with additional boiler.

Products

VMC300 VTC300 VTC500
OIL AND GAS 9

Circulation unit with mixing valve together with controller for radiator circuit.

Products

GRC200
OIL AND GAS 12

Circulation unit with mixing valve together with controller for radiator circuit.

Products

GRC200
OIL AND GAS 13

Gas boiler with ESBE Manifold Box for applications were multiple circuits is used. The ESBE Manifold Box is recommended to distribute the heating supply in to the different circuits via individual ESBE circulation units.

DOMESTIC HOT WATER 1

Domestic hot water system with asymmetrical flow.

DOMESTIC HOT WATER 2

Domestic hot water system with symmetrical flow.

DOMESTIC HOT WATER 3

Domestic hot water with both in-line and point-of-use regulation.

DOMESTIC HOT WATER 4

Domestic hot water with a compact valve combination.

Products

VMB400, VMB500
DOMESTIC HOT WATER 5

Thermosyphon system together with additional boiler.

Products

VMC300
DOMESTIC HOT WATER 6

Thermosyphon system together with additional boiler with adjustable diverting temperature.

Products

VMD300
DOMESTIC HOT WATER 7

Circulation unit to optimize energy transportation in domestic hot water application.

DOMESTIC HOT WATER 8

Indirect potable hot water temperature control with a PHW controller CRS211.

DOMESTIC HOT WATER 12

Potable hot water system with circulation

DOMESTIC HOT WATER 13

Indirect potable hot water temperature control with a PHW controller CRS211 and flow limitation valve VTF320

DOMESTIC HOT WATER 17

Domestic hot water system with circulation.

Products

SLD130
DOMESTIC HOT WATER 18

Domestic hot water system with symmetrical flow.

Products

SLD130
RADIATORS 1

3-way valve-controlled radiator circuit.

RADIATORS 2

4-way valve-controlled radiator circuit.

RADIATORS 3

3-way valve together with controller for radiator circuit.

Products

VRG130 CRB200 90C
RADIATORS 4

4-way valve together with controller for radiator circuit.

Products

VRG140 CRB200 90C
RADIATORS 5

4-way bivalent together with controller for radiator circuit.

Products

VRB140 CRB200 90C
RADIATORS 6

Heat system with radiator circuit and under floor system.

RADIATORS 7

Heat system with independent radiator circuit and under floor system.

RADIATORS 8

Bivalent heat system with independent radiator circuit and under floor system.

Products

VRB140 CRB200 90C
RADIATORS 10

Direct circulation unit intended to transport energy in the most efficient way.

Products

GDA200, GDA300

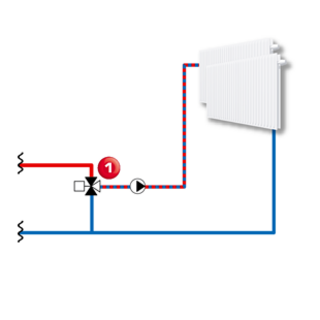

RADIATORS 12

Radiator circuit with premixing of flow temperature. For use with indoor or outdoor temperature controller.

Products

SLD130
UNDERFLOOR HEATING 1

Thermostatic regulated under floor heating with one zone.

Products

VTA370, VTA570
UNDERFLOOR HEATING 2

Thermostatic regulated under floor heating with multiple zones.

Products

VTA370, VTA570
UNDERFLOOR HEATING 3

Constant temperature regulated under floor heating with multiple zones.

Products

VRG130 CRA200
UNDERFLOOR HEATING 4

Indoor / Outdoor based regulated under floor heating with multiple zones.

Products

VRG130 CRB200 90C
UNDERFLOOR HEATING 5

Heat system with radiator circuit and under floor system.

UNDERFLOOR HEATING 6

Heat system with independent radiator circuit and under floor system.

UNDERFLOOR HEATING 7

Bivalent heat system with independent radiator circuit and under floor system.

Products

VRB140 CRB200 90C
UNDERFLOOR HEATING 8

Circulation unit with bivalent valve together with actuator for under floor heating control.

UNDERFLOOR HEATING 9

Circulation unit with thermostatic fixed temperature control for under floor heating.

Products

GFA200, GFA300
UNDERFLOOR HEATING 10

Thermostatic regulated underfloor heating with one zone.


Products

VTG140

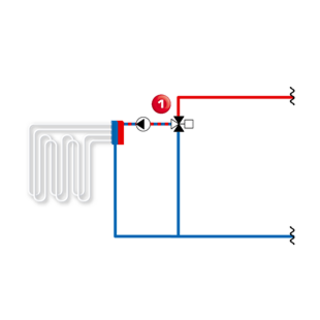

UNDERFLOOR HEATING 11

Temperature regulated underfloor heating with one zone. For use with indoor or outdoor temperature controller

Products

SLD130
COOLING 1

System with both heating and cooling.

COOLING 2

Cooling system with 3-way regulation and circulation.

COOLING 3

Cooling system with 2-way regulation and variable flow.

COOLING 4

Cooling system with 3-way regulation and circulation.

Products

VLA100 VLE100 ALB100
COOLING 5

Cooling system with 2-way regulation and variable flow.

Products

VLA100 VLE100 ALB100
COOLING 6

Circulation unit mixing valve together with actuator to control cooling systems.

Products

GRA200, GRA300
DISTRICT HEATING 1

Domestic hot water control in substations for district heating.

DISTRICT HEATING 2

Domestic hot water control and termostatic under floor heating control in systems with district heating.

DISTRICT HEATING 3

Domestic hot water control and regulation of under floor heating for systems with district heating.

DISTRICT HEATING 4

Circulation unit with mixing valve together with controller for district heating systems.

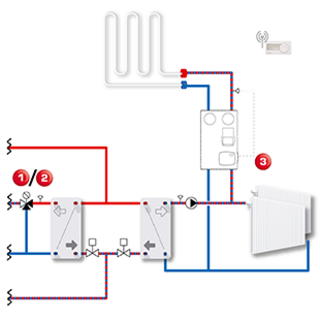

DISTRICT HEATING 5

Circulation unit with mixing valve together with controller for district heating systems.
