VSB132, External thread and compression fitting
![Prod_VSB132_DN15_verA_issueA_lr.png](/storage/2A16DBA1EF527F584B4DEE21A3BF47AD4610150F69508D7BE0F5C0A244C3E470/9e4b1f2a7eb14da58c3596fba692c3cf/160-160-0-png.Png/media/5eb4a79dbc02436293f61739a8ed35ca/Prod_VSB132_DN15_verA_issueA_lr.png)
![VSBX32 front_A-01.png](/storage/D17B111D2F43E6255C2DC6D814888404CE17DBBFB281C0B23C4756F27C932DC1/f12602b29dbe4d6a8ecc50f443fc0903/160-160-0-png.Png/media/9961b6ea93534bb4a5f10d0d0495eae9/VSBX32%20front_A-01.png)
![VSBX32 side_A-01.png](/storage/74215FD80F26859AD843E8E6A23F2731D64C39A7DE7BAAE84831D6A355A37130/0ecb2627aefb421c86adc1af5e8fde21/160-160-0-png.Png/media/1d3d59ce52074d8d96eb926dfed33f37/VSBX32%20side_A-01.png)

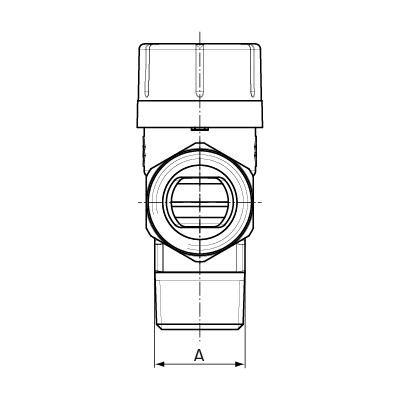

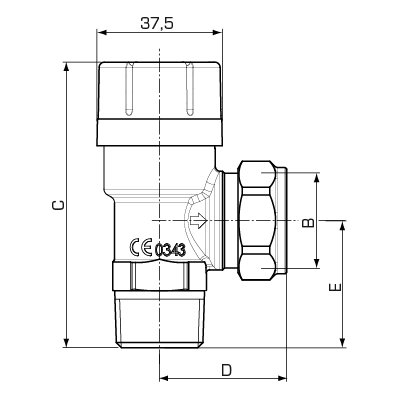

Art.no. | Reference | DN | Opening pressure [MPa] | Opening pressure [bar] | Blow-off capacity [kW] | Blow-off capacity [l/h] | Connection A | Connection B | C [mm] | D [mm] | E [mm] | Weight [kg] |
36020100 | VSB132 | 15 | 0,6 | 6,0 | 75 | 76 | R ½" | CPF 15 mm | 81,2 | 40,5 | 34,0 | 0,18 |
36020400 | VSB132 | 15 | 0,9 | 9,0 | 75 | 76 | R ½" | CPF 15 mm | 81,2 | 40,5 | 34,0 | 0,18 |
36020500 | VSB132 | 15 | 1,0 | 10,0 | 75 | 76 | R ½" | CPF 15 mm | 81,2 | 40,5 | 34,0 | 0,18 |
Installation support
Documents
Name | Download |
Installation instruction VSB100 |
|
Technical data
Technical data
Pressure class: | PN 16 |
Connections, External thread (R): | EN 10226-1 |
Connections, Compression fitting (CPF): | EN 1254-2 |
Temperature, max.: | +95 °C |
Temperature, min.: | 0 °C |
Material, Valve housing and other metal parts with fluid contact: | Dezincification resistant brass, DZR* |
*Suitable for drinking water applications |
