Mixing valve

VRG140

  • Superb regulation for best double mixing performance.
  • Compact,flexible and easy to install.
  • Long lasting and high durability.
  • Perfect match between the valve and ESBE actuators.
Series VRG140 are 4-way valves suitable for double mixing operation. The valves are made of high-performing brass allowing use in heating and cooling installations. The VRG series is available in DN15-50 and comes with different types of connections to suit most pipe dimensions. The valve is perfectly combined with ESBE actuators and controllers.
Product range

VRG141, Internal thread

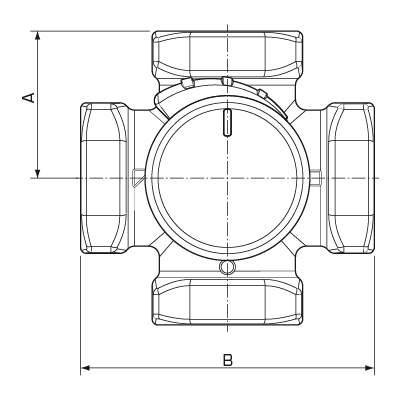

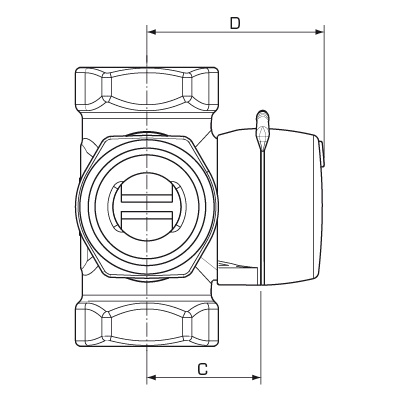

Art.no. Reference DN Kvs Connection A [mm] B [mm] C [mm] D [mm] Weight [kg] Replaces Note
11640100 VRG141 15 2,5 Rp ½" 36 72 32 50 0,40 11003400
11640200 VRG141 20 4 Rp ¾" 36 72 32 50 0,52 11003600
11640300 VRG141 20 6,3 Rp ¾" 36 72 32 50 0,52 11003900, 11050800
11640400 VRG141 25 10 Rp 1" 41 82 34 52 0,80 11004200, 11051000
11640500 VRG141 32 16 Rp 1¼" 47 94 37 55 1,08 11004900, 11051300
11641500 VRG141 40 25 Rp 1½" 53 106 44 62 1,89 11051400, 11640600
11641700 VRG141 50 40 Rp 2" 60 120 46 64 2,55 11051600, 11640700

VRG142, External thread

Art.no. Reference DN Kvs Connection A [mm] B [mm] C [mm] D [mm] Weight [kg] Replaces Note
11640800 VRG142 15 2,5 G ¾" 36 72 32 50 0,40
11640900 VRG142 20 4 G 1" 36 72 32 50 0,52
11641000 VRG142 20 6,3 G 1" 36 72 32 50 0,52 11004100
11641100 VRG142 25 10 G 1¼" 41 82 34 52 0,80
11641200 VRG142 32 16 G 1½" 47 94 37 55 1,08
11641600 VRG142 40 25 G 2" 53 106 44 62 1,90 11641300
11641800 VRG142 50 40 G 2¼" 60 120 46 64 2,55 11641400
Installation support

Installation of VRG140

How to install ARA600 actuator on VRG valve

Installation examples

Flow through VRGxx0 valve

VRGxx0 valve flow

Characteristic graph, VRGxx0 valves

50% valve position in VRGxx0 valves

Operation

Operation
The flat-sided spindle top points towards the sleeve position.

Installation example

Installation example

Documents

Technical data

Technical data

Pressure class: PN10
Torque (at nominal pressure): DN15-32: < 3 Nm;
DN40-50: < 5 Nm
Leakrate in % of flow: <1,0
Working pressure: 1 MPa
max. Differential pressure drop: 100 kPa
Close off pressure: 100 kPa
Rangeability Kv/Kv min, A-AB: 100
Conformity:
Media temperature, max. continuosly: +110 °C
Media temperature, max. temporarily: +130 °C
Media temperature, min.: -10 °C
Connections, Internal thread (Rp): EN 10226-1
Connections, External thread (G): ISO 228/1
Material, Valve body: Dezincification resistant brass DZR
Material, Slide: Abrasion resistant brass
Material, Shaft and bushing: PPS composite
Material, O-rings: EPDM

Conformity

Conformity
PED 2014/68/EU, article 4.3

Valve characteristics

Valve characteristics

Dimensioning

Dimensioning
Please see data sheet
Accessories and Spare Parts

Spare parts

Art No. Reference Designation Note Data sheet Instruction manual
17006900 17006900 VRG802 ESBE VRG802 Interior kit DN15/20. download download
17006910 17006910 VRG802 ESBE VRG802 Interior kit DN25. download download
17006920 17006920 VRG802 ESBE VRG802 Interior kit DN32/40. download download
17006930 17006930 VRG802 ESBE VRG802 Interior kit DN40/50. download download
17006950 17006950 VRG802 ESBE VRG802 Interior kit DN50 download download
17006940 17006940 VRG803 ESBE VRG803 Knob VRG/VRB. download download

Options

Art No. Reference Designation Note Data sheet Instruction manual
16103800 16103800 VRI111 ESBE VRI111 Insulation shell DN 15/20 for insulation of ESBE valve series VRG100, VRG200, VRG300 and VRB100. DN 15/20 download download
16103900 16103900 VRI111 ESBE VRI111 Insulation shell DN25 for insulation of ESBE valve series VRG100, VRG200, VRG300 and VRB100. DN25 download download
16104000 16104000 VRI111 ESBE VRI111 Insulation shell DN32 for insulation of ESBE valve series VRG100, VRG200, VRG300 and VRB100. DN32 download download
16104100 16104100 VRI111 ESBE VRI111 Insulation shell DN40 for insulation of ESBE valve series VRG100, VRG200, VRG300 and VRB100. DN40 download download

Connection kit KTD100

Art No. Reference Designation Note Data sheet Instruction manual
36551700 36551700 KTD112 Connection kit with external thread R ¾" for use on externally threaded valves G 1". Suits series VRG132, VRG142, VRG232, VRG332 and VRB142. download download
36551800 36551800 KTD112 Connection kit with external thread R 1" for use on externally threaded valves G 1¼". Suits series VRG132, VRG142, VRG232, VRG332 and VRB142. download download
36551900 36551900 KTD112 Connection kit with external thread R 1¼" for use on externally threaded valves G 1½". Suits series VRG132, VRG142, VRG232, VRG332 and VRB142. download download
36552000 36552000 KTD112 Connection kit with external thread R 1½" for use on externally threaded valves G 2". Suits series VRG132, VRG142, VRG232, VRG332 and VRB142. download download
36552100 36552100 KTD112 Connection kit with external thread R 2" for use on externally threaded valves G 2¼". Suits series VRG132, VRG142, VRG232, VRG332 and VRB142. download download

Adaptor Kits

Art No. Reference Designation Note Data sheet Instruction manual
16053700 16053700 VRG804 ESBE VRG804 Adaptor kit ESBE valves series VRx without hand lever for controller 90C. Series 90C. Comes with the controller. download download
16053300 16053300 VRG801 ESBE VRG801 Adaptor kit ESBE valves series VRG, VRH, VRB, VRS, VRP. Series 90, CRA120, CRC120. Order separately. download download
16000500 16000500 ARA803 ESBE ARA803 Adaptor kit ESBE valves series VRx, MG, G, F, BIV, H, HG. Series ARA600, CRA110, CRA140, CRA150, CRB100, CRC110, CRC140, CRD120, CRS130. Comes with the actuator or Controller. download download
Download area

Download area

Type Preview Download
Data sheet VRG140 download
Installation instruction VRG140 download
Certificate Declaration of Conformity, VRG140 download
Certificate Declaration of Conformity UK CA, VRG140 download
Certificate Building Product Declaration BPD3, VRG140 download
Certificate EAC certificate (RU) download
Image VRG141, high res download
Image VRG142, high res download
2D image VRG140 download
3D drawing (stp file) VRG141, DN15 download
3D drawing (stp file) VRG142, DN15 download
3D drawing (stp file) VRG141, DN20 download
3D drawing (stp file) VRG142, DN20 download
3D drawing (stp file) VRG141, DN25 download
3D drawing (stp file) VRG142, DN25 download
3D drawing (stp file) VRG141, DN32 download
3D drawing (stp file) VRG142, DN32 download
3D drawing (stp file) VRG141, DN40 download
3D drawing (stp file) VRG142, DN40 download
3D drawing (stp file) VRG141, DN50 download
3D drawing (stp file) VRG142, DN50 download
Applications

Applications

Valve-controlled radiator circuit with raised return temperature.

4-way valve-controlled radiator circuit.

4-way valve together with controller for radiator circuit.
