Controller
CRD200
- Combined outdoor and room temperature Controller
- Wireless room unit
- Real time updated heating curve
- ESBE Smart Software and Self-Adaptive System
- Low noise level
- Accurate and precise control
- Constant temperature working mode available
- Room temperature working mode available
- Outdoor temperature compensated working mode available
- Possible upgrade to pump control (ON/OFF)
The Series CRD200 is a combined temperature Controller with integrated actuator dedicated for ESBE Rotary valves Series VRG.
The Controller Series CRD200 is equipped with ESBE Smart Software and Self-Adaptive System which not only increase the performance of the device but allows the device to work with all control modes; possible to be set as constant, indoor temperature and weather compensated via software.
The Controller has a dynamic heating curve updated in real time which means that no curve settings are needed and setting of the Controller reduced to a minimum.
The Series CRD200 comes with wireless room unit.
Product range
CRD200
| Art.no. | Reference | Voltage [V AC] | Torque [Nm] | Room display unit | Weight [kg] | Replaces |
| 12684200 | CRD221 | 230 | 6 | Wireless | 1,3 | 12682200 |
Installation support
Install ESBE Controller - CRD200
Change opening direction – ESBE Controllers (CRx200)
Change target temperature – ESBE Controllers (CRx200)
Change maximum/minimum flow temperature – ESBE Controllers (CRx200)
External activation of T2 – ESBE Controllers (CRx200)
Configure ESBE Controller CRD200
Upgrade your ESBE Controller – CRD Wireless to CRD Wired
Upgrade your ESBE Controller – CRA200 to CRD200
Upgrade your ESBE Controller – CRB200 to CRD200
Upgrade your ESBE Controller – CRC200 to CRD200
Installation example
This application shows how to control the indoor temperature based on the outdoor and indoor temperature.
This control setup is used for buildings where a room unit can be used for indoor temperature reference, e.g. buildings with open space and where the most accurate temperature control is needed. The CRD200 controls the indoor temperature based on the outdoor and indoor temperature. The heating curve is constantly adjusted by ESBE Smart Software for the best indoor comfort.
All heat emitters are supplied with the same flow temperature calculated by CRD200. The heating circuit pump will be shut off via CRA913 Pump control when the valve is closed - no heat demanded.
* Cable or wireless connection of room unit depending on requirements.
Documents

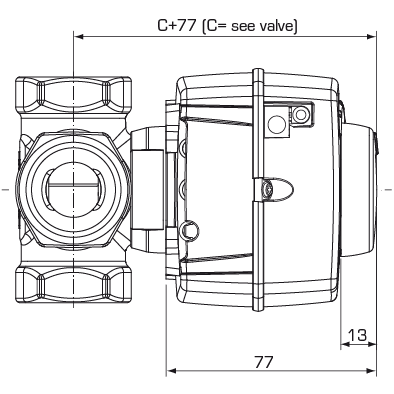

Technical data
Technical data
| Sensors: | Temperature sensor type NTC |
| Enclosure rating: | Actuator unit: IP41; Room unit: IP20 |
| Protection class: | II |
| Power supply: | Actuator unit: 230 ± 10% V AC, 50 Hz; Room unit - wireless: 2x1,5V LR6/AA |
| Power consumption: | 10 VA |
| Battery endurance, wireless room display unit: | 1 year |
| Torque: | 6 Nm |
| ERP temperature controls class: | VII |
| Energy efficiency contribution: | 3,5 % |
| Radio frequency: | Wireless room unit - 868 MHz; ITU region 1 approved acc. to EN 300220-2 |
| Running time at max. speed: | 30 s |
| Weight: | 1,3 kg |
| Supplied parts: | • Actuator with integrated controller |
| • Flow temperature sensor | |
| • EU adapter 230V | |
| • Wireless room unit | |
| • Outdoor sensor | |
| • Communication cable between outdoor sensor and actuator | |
| Ambient temperature, max.: | +50 °C |
| Ambient temperature, min.: | +5 °C |
| Temperature range, Flow temperature sensor: | +5 to +95 °C |
| Temperature range, Outdoor sensor: | -50 to +70 °C |
| Temperature range, Room unit (Indoor sensor): | +5 to +30 °C |
Conformity
EMC 2014/30/EU
RoHS3 2015/863/EU
RED 2014/53/EU
SI 2016 No. 1091
SI 2012 No. 3032
SI 2017 No. 1206
Wiring
Accessories and spare parts
Adaptor Kits
| Art No. | Reference | Designation | Note | Data sheet | Instruction manual | |
 |
16000500 | ARA803 | ESBE ARA803 Adaptor kit ESBE valves series VRx, MG, G, F, BIV, H, HG. | Series ARA600, CRA110, CRA140, CRA150, CRB100, CRC110, CRC140, CRD120, CRS130. |  |
|
 |
16000600 | ARA805 | ESBE ARA805 Adaptor kit Meibes valves. | Series ARA600, CRA110, CRA140, CRA150, CRB100, CRC110, CRC140, CRD120, CRS130. Order separately. | |
|
 |
16000700 | ARA807 | ESBE ARA807 Adaptor kit Watts valves. | Series ARA600, CRA110, CRA140, CRA150, CRB100, CRC110, CRC140, CRD120, CRS130. Order separately. | |
|
 |
16000800 | ARA806 | ESBE ARA806 Adaptor kit Honeywell Centra Corona valves, series V5433A, V5433G, V5442A, V5442G. | Series ARA600, CRA110, CRA140, CRA150, CRB100, CRC110, CRC140, CRD120, CRS130. Order separately. | |
|
 |
16000900 | ARA808 | ESBE ARA808 Adaptor kit Lovato valves. | Series ARA600, CRA110, CRA140, CRA150, CRB100, CRC110, CRC140, CRD120, CRS130. Order separately. | |
|
 |
16001000 | ARA809 | ESBE ARA809 Adaptor kit PAW valves. | Series ARA600, CRA110, CRA140, CRA150, CRB100, CRC110, CRC140, CRD120, CRS130. Order separately. | |
|
 |
16001100 | ARA810 | ESBE ARA810 Adaptor kit WITA valves Minimix, Maximix, H10, H9GG, H9MS. | Series ARA600, CRA110, CRA140, CRA150, CRB100, CRC110, CRC140, CRD120, CRS130. Order separately. | |
|
Options
| Art No. | Reference | Designation | Note | Data sheet | Instruction manual | |
 |
16200700 | ARA801 | ESBE ARA801 Auxiliary switch kit ARA600. | |
|
|
 |
17055600 | CRA913 | ESBE CRA913 Pump control module, On/Off | |
|
|
 |
17056400 | CRB916 | ESBE CRB916 Communication radio module, wireless | |
|
Spare parts
| Art No. | Reference | Designation | Note | Data sheet | Instruction manual | |
 |
17053100 | CRA911 | ESBE CRA911 Flow pipe sensor, 5m cable | |
|
|
 |
17055300 | CRB912 | ESBE CRB912 Room unit, cable | |
|
|
|
17055500 | CRB913 | ESBE CRB913 Room unit, wireless | |
|
|
 |
17055700 | CRB914 | ESBE CRB914 Communication cable, 20m | |
|
|
 |
17056000 | CRC911 | ESBE CRC911 Outdoor sensor | |
|
|
 |
17056200 | CRA915 | ESBE CRA915 UK Plug 230V-12V | |
|
|
 |
17056300 | CRA911 | ESBE CRA911 EU plug 230V-12V | |
|
Download area
Download area
| Type | Preview | Download |
| Data sheet | CRD200 |
|
| Installation instruction | CRD200 - Assembly |
|
| Installation instruction | CRD200 - Settings |
|
| Certificate | Declaration of Conformity, CRD200 |
|
| Certificate | Declaration of Conformity UKCA, CRD200 |
|
| Certificate | Building Product Declaration BPD3, CRD200 |
|
| Certificate | EAC certificate, CRD200 |
|
| Certificate | UKRSEPRO certificate (UA), CRD200 |
|
| Image | CRD221, high res |
|
| Image | CRB912/CRB913 Room unit, high res |
|
| 2D Image | CRD220 |
|
| 2D Image | CRB912/CRB913 Room unit |
|
| 3D drawing (stp file) | CRD220 |
|
| 3D drawing (stp file) | CRB912/CRB913 Room unit |
|
