HWC Kit UPTT

KTE400

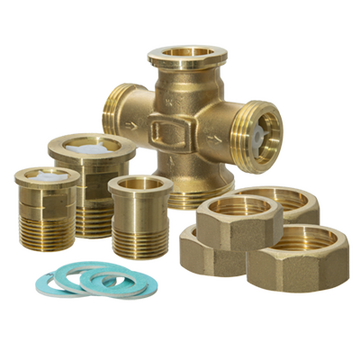

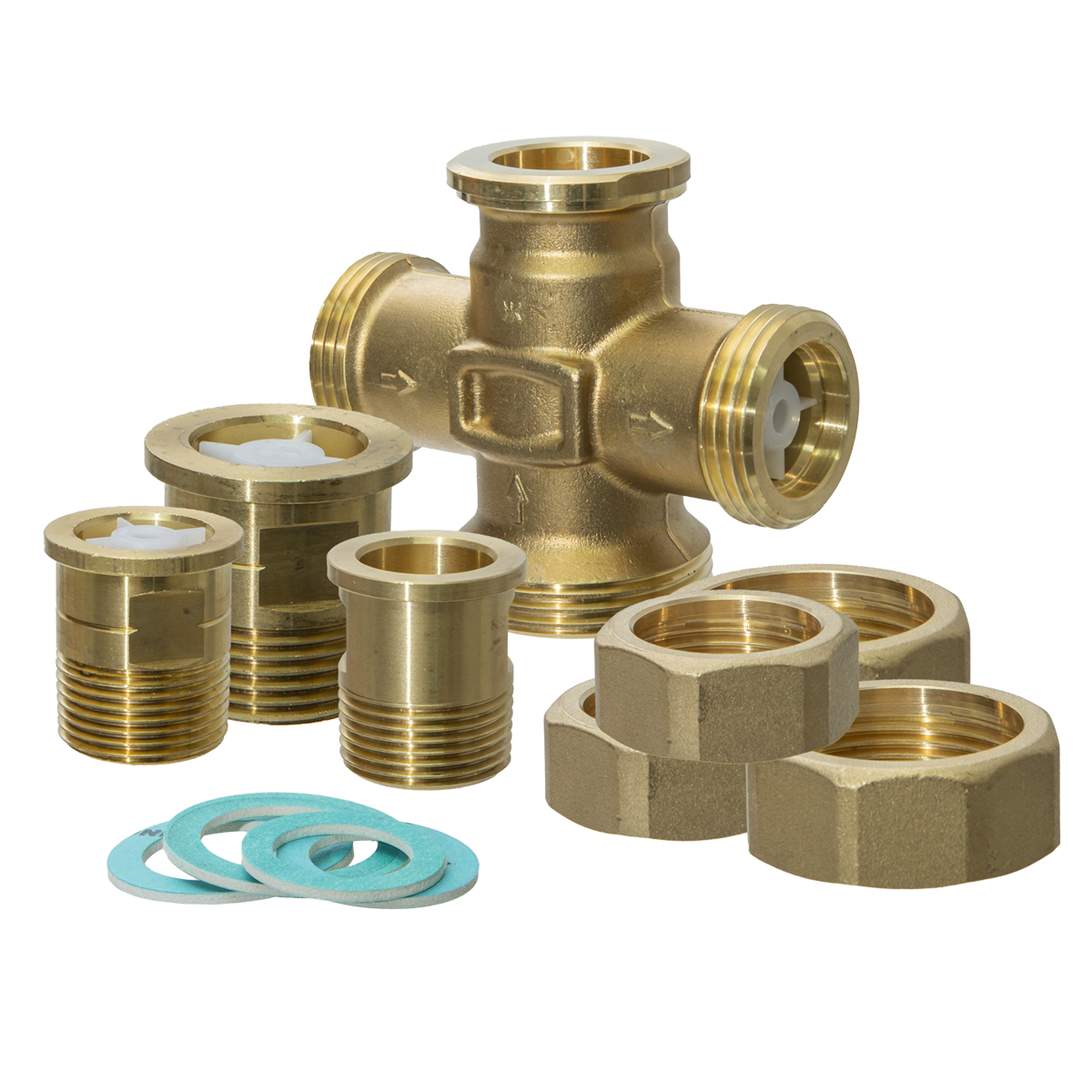

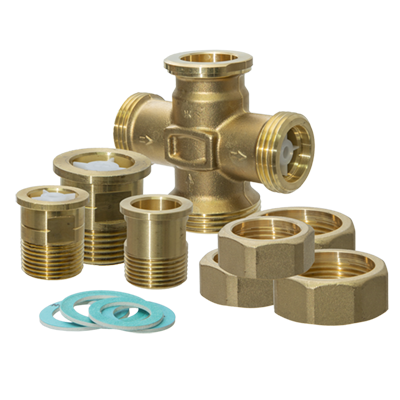

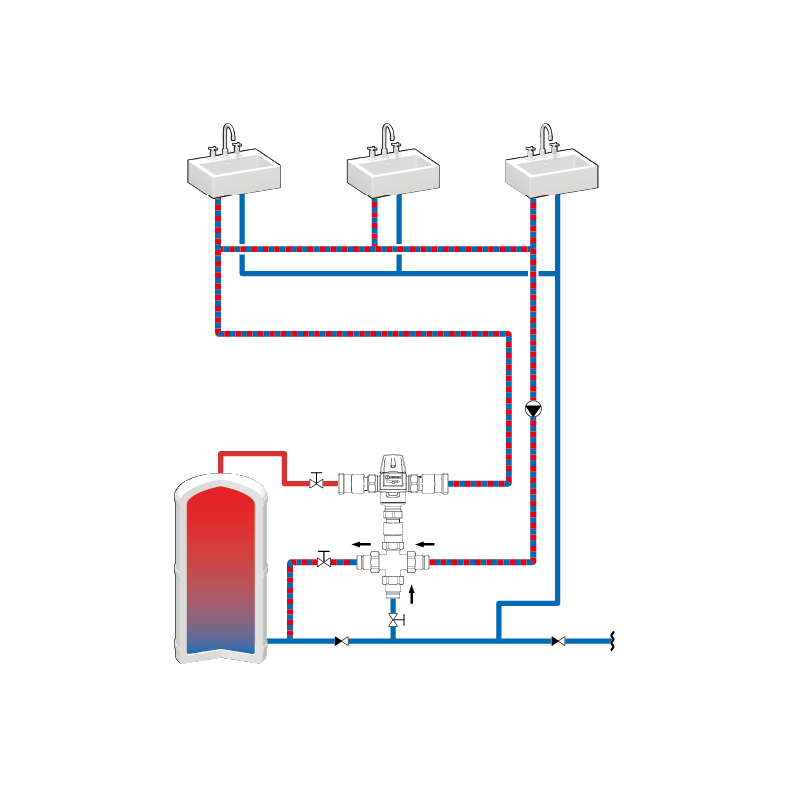

Connection kit with external thread and check valves for easy connection of UPTT to a hot water circulation system (HWC).

Product range

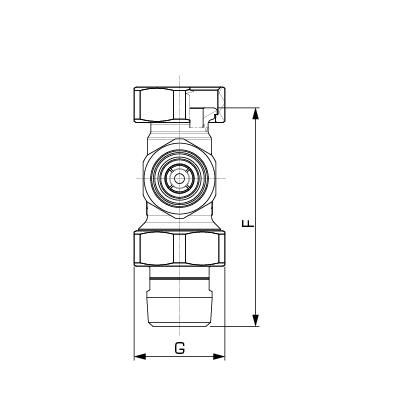

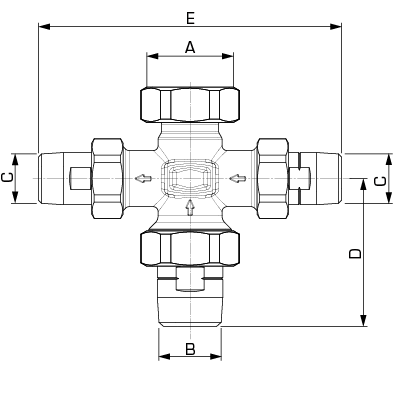

Art.no.	Reference	Connection A	Connection B	Connection C	D [mm]	E [mm]	F [mm]	G [mm]	Weight [kg]
36554800	KTE412	RN 1¼"	R 1"	R ¾"	75	154	111	46	0,85

Installation support

Name	Download
Installation instruction KTE400

Technical data

Pressure class:	PN 10
Media temperature, max.:	+120 °C
Media temperature, min.:	-20 °C
Connections, External thread (R):	EN 10226-1
Connections, Internal thread (G):	ISO 228/1
Material, Nut:	Brass CW 614N
Material, Connection piece:	Dezincification resistant brass, DZR*
	*Suitable for drinking water applications
Material, Gasket:	Unitec 300
