ESBE Products for Tanks & Water Heaters

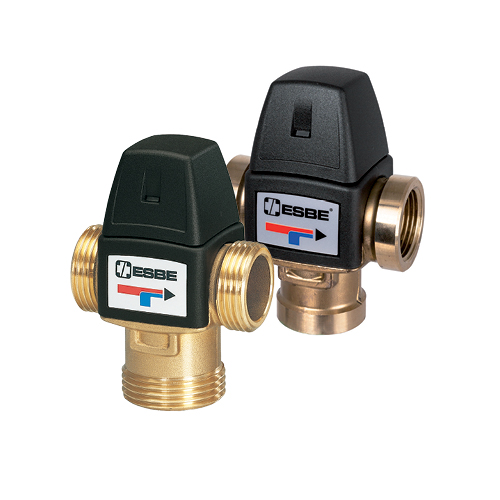

ESBE VTA320 and VTA350 – Premium Safety and Efficiency for Hot Water Tanks

The ESBE VTA322 and VTA350 are thermostatic mixing valves designed for optimal performance with hot water tanks. They are designed to deliver consistent water temperatures, ensuring comfort, energy efficiency, and protection against scalding. Ideal for domestic and residential setups, it protects your plumbing, and enhances system longevity by regulating thermal output precisely and reliably.  Available in a wide range of setups. Quality makes difference

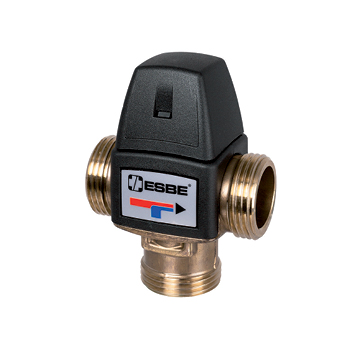

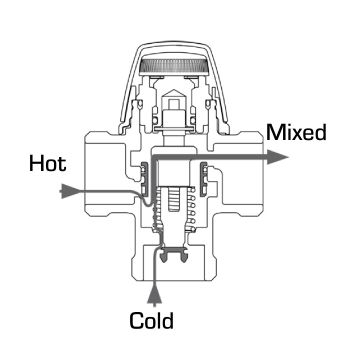

VTA320

• L-pattern flow
• VTA321 External thread ¾”
• VTA322 Internal thread ¾” and 1”
• Temp. ranges

                 o    84-129F
                 o    86-158F
                 o    95-140F

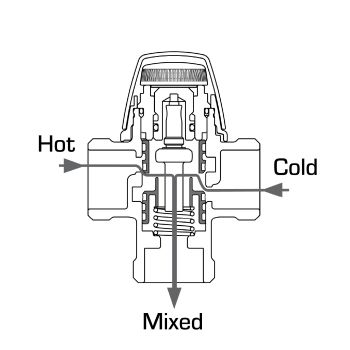

VTA350

• T-pattern flow
• VTA351 External thread ¾”
•  VTA352 Internal thread ¾” and 1”
• Temp. ranges

                 o    84-129F
                 o    86-158F
                 o    95-140F

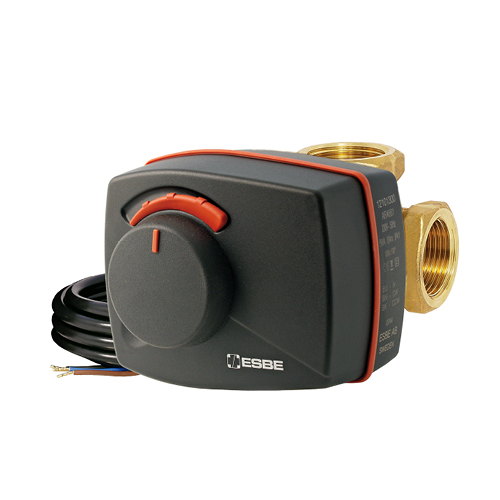

Valve and actuator- a perfect combination

The robust valve series VRG130 in combination with the ESBE actuator ARA700 is superb for mixing function with external control.

The ESBE VRG130 is a robust 3-way mixing valve designed for control in hot water tank installations. It can be manually adjusted or motorized with the ESBE ARA700 actuator for automated regulation. It allows precise adjustment of water temperature, with an extremely low internal leakage (<0,05%) helping to balance comfort and energy efficiency.

The ESBE ARA700 actuator adds possibility for electrical control of
our hot water system. Designed to pair seamlessly with ESBE mixing valves VRG130. With reliable performance and easy integration, it enhances comfort, efficiency, and system responsiveness. A smooth operation!

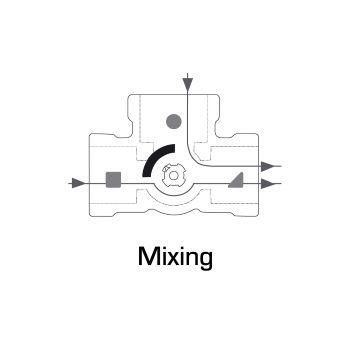

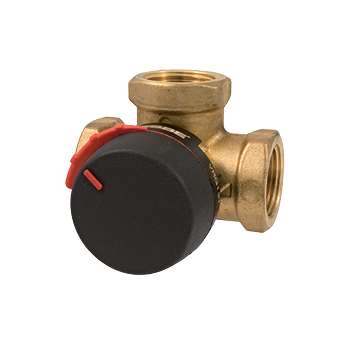

VRG131

• L-pattern
• VRG131 Internal thread ½” – 2”
• VRG132 External thread ¾”-2 ¼”
• DN15-50
• CV 3-46

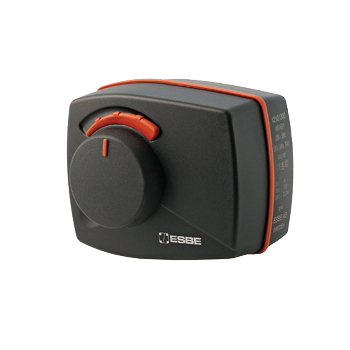

ARA700

• 3-point actuator
• 24V or 120V signal
• Operation open/close 25, 50 or 100 sec
