Circulation unit, Fixed temperature
GFF200
- Constant temperature control thanks to the thermostatic valve
- Adjustable flow temperature settings
- 180mm pump ready – be free to use favorite pump manufacturer
- Easy to install with adjustable wall bracket

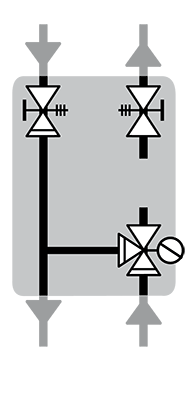

The ESBE series GFF200 is a circulation mixing unit which is intended for heating circulations where the constant temperature control are required. Equipped with two shut-off valves with thermometers, check valve and high class isolation shell. The GFF200 is delivered with the 3-way thermostatic valve, which provides constant temperature regulation of the heating system and adjustable temperature setting.
The ESBE Circulation Unit GFF200 is ready to work with 180mm pumps. The smart adjustable insulation shell makes it sure that any kind of pump will be isolated in a right way.
Product range
GFF211
| Art.no. | Reference | DN | Temperature range [°C] | Connection I | Connection J | Weight [kg] | Note |
| 61222100 | GFF211 | 25 | 20–55 | G 1" | G 1½" | 3,4 | Replaces 61220100 |
| 61222200 | GFF211 | 32 | 20–55 | G 1¼" | G 1½" | 3,7 |
Technical data
Technical data
| Pressure class: | PN 10 |
| Working pressure: | 1,0 MPa |
| Insulation: | EPP λ 0,036 W/mK |
| Media, Heating water: | in accordance with VDI2035 |
| Media, Water/Glycol mixtures: | max. 50 % (above 20% admixture, the pump data must be checked) |
| Media temperature, max.*: | +100 °C |
| Media temperature, min.*: | +5 °C |
| Ambient temperature, max.*: | +60 °C |
| Ambient temperature, min.*: | 0 °C |
| *Media temperature/Ambient temperature, max.°C/min.°C.: | consider data for choosen pump |
| Connections, Internal thread (G): | ISO 228/1 |
| Connections, External thread (G): | ISO 228/1 |
| Material, in contact with water |
Components: Brass, steel Sealing materials: PTFE, Aramid fibre, EPDM |
Integrated valve
| ESBE VTA572, DN25-4,8 | |
| max. Differential pressure drop: | 100kPa (1bar) |
| Temperature range: | 20 - 55⁰C |
| Temperature stability: | ±3⁰C * |
| *: | * Valid at unchanged hot/return water pressure, minimum flow rate 9 l/min. Minimum temperature difference between hot water inlet and mixed water outlet 10°C and recommended maximum temperature difference between return water and mixed water outlet: 10°C |
| ESBE VTA372, DN20-3,4 | |
| max. Differential pressure drop: | 100 kPa (1bar) |
| Temperature range: | 20 - 55⁰C |
| Temperature stability: | ± 3⁰C * |
| *: | * Valid at unchanged hot/cold water pressure, minimum flow rate 9 l/min. Minimum temperature difference between hot water inlet and mixed water outlet 10°C |
Conformity

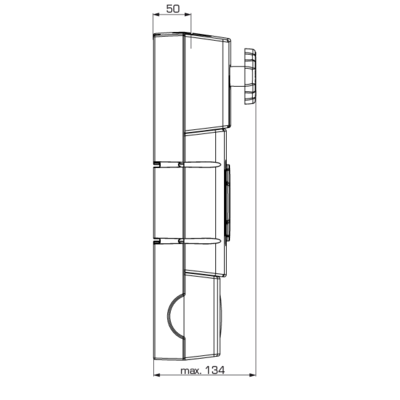

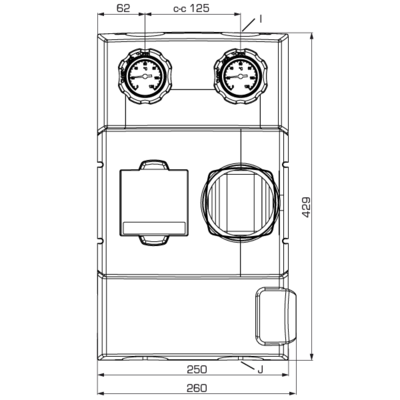

Dimensioning
Wiring
Accessories and spare parts
Options
| Art No. | Reference | Designation | Note | Data sheet | Instruction manual | |
 |
66001100 | GMA411 | ESBE GMA411 Hydraulic separation for 1 circulation unit. | DN25/32 |  |
|
 |
66001200 | GMA421 | ESBE GMA421 Manifold for 2 circulation units, without integrated hydraulic separator function. | DN25/32 | |
|
 |
66001300 | GMA431 | ESBE GMA431 Manifold for 3 circulation units, without integrated hydraulic separator function. | DN25/32 | |
|
 |
66001400 | GMA441 | ESBE GMA441 Manifold for 4 circulation units, without integrated hydraulic separator function. | DN25/32 | |
|
 |
66001500 | GMA451 | ESBE GMA451 Manifold for 5 circulation units, without integrated hydraulic separator function. | DN25/32 | |
|
 |
66001600 | GMA521 | ESBE GMA521 Manifold for 2 circulation units, with integrated hydraulic separator function. | DN25/32 | |
|
 |
66001700 | GMA531 | ESBE GMA531 Manifold for 3 circulation units, with integrated hydraulic separator function. | DN25/32 | |
|
Spare parts
| Art No. | Reference | Designation | Note | Data sheet | Instruction manual | |
 |
67003400 | GSP911 | ESBE GSP911 Ball valves incl thermometer DN25 G1", 2 pcs/package | DN25 | |
|
|
67004000 | GSP911 | ESBE GSP911 Ball valves incl thermometer DN32 G1¼”, 2 pcs/package | DN32 | |
|
 |
37001700 | VTA937 | ESBE VTA937 Exchange kit VTA370, 20 - 55°C | VTA370 | |
|
