Manifold

GMA300

  • Insulation shell according to EnEV2014 standard
  • Made for the circulation units DN20
  • Easy installation with included wall brackets

Series GMA320 is manifolds for 2 circulation units and Series GMA330 is manifolds for 3 circulation units including insulation according to EnEV2014 and wall brackets.

Product range

GMA321

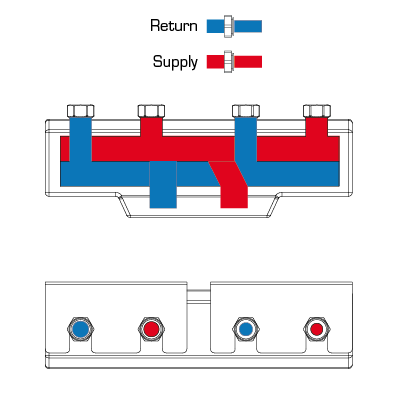

GMA320 front_A-01.png
GMA320 top_A-01.png
Art.no. Reference No. of circulation units Connections to system Connections from heat source with hydraulic separator Weight [kg]
66000500 GMA321 2 RN 1" G 1" No 3,1

GMA331

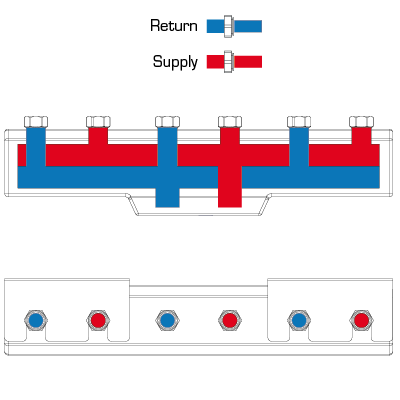

GMA330 front_A-01.png
GMA330 top_A-01.png
Art.no. Reference No. of circulation units Connections to system Connections from heat source with hydraulic separator Weight [kg]
66000600 GMA331 3 RN 1" G 1" No 4,5
Installation support

Guidance for installers, Circulation Units

Operation

Operation
GMA321
GMA331

Documents

Technical data

Technical data

Pressure class: PN 4
Working pressure: 0,4 MPa
Standard outlet spacing: 90 mm
Flow rate: 3,0 m³/h
Output: 70 kW at Δt 20K
Insulation: EPP λ 0,036 W/mK
Media temperature, max.: +110 °C
Media temperature, min.: 0 °C
Material, in contact with water Components: Black coated steel S235

Conformity

PED 2014/68/EU, article 4.3 /
SI 2016 No. 1105
EnEV2014

Dimensioning

Dimensioning guide - Please see data sheet
