Actuator
90 2-point
- Adjustable operating range.
- With built-in relay.
Series 90 with 2-point (on/off) signal is suitable for diverting operations together with change over / diverting valves. In these applications will only the end-positions of the actuator operating range be used. The actuator has built-in relay and should be selected when the actuator is to be controlled by an on/off-thermostat.
Product range
90, 2-point 230 V
| Art.no. | Reference | Voltage [V AC] | Running time 90° [s] | Control signal | Torque [Nm] | Note |
| 12052500 | 97 | 230 | 15 | 2-point SPST | 5 | With built-in relay. Replaces 87 |
| 12052600 | 98 | 230 | 60 | 2-point SPST | 15 | With built-in relay. Replaces 88, 88S |
Installation support
Documents
| Name | Download |
| Installation instruction 90, 2-point |
|

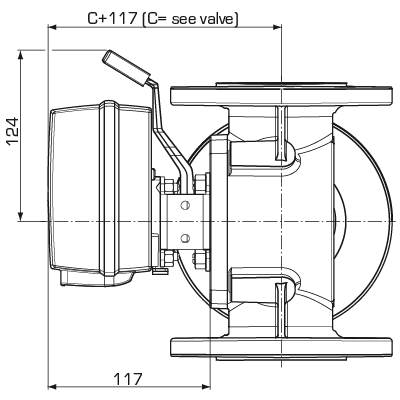

Technical data
Technical data
| Power supply: | 230±10% V AC, 50 Hz |
| Power consumption: | 5 VA |
| Enclosure rating: | IP54 |
| Protection class: | II |
| Torque: | See dimension table |
| Rating auxiliary switch: | 6(3) A 250 V AC |
| Weight: | 0,8 kg |
| Ambient temperature, max.: | +55 °C |
| Ambient temperature, min.: | -15 °C |
EMC 2014/30/EU
RoHS 2011/65/EU
Wiring
Accessories and Spare Parts
Adaptor Kits
| Art No. | Reference | Designation | Description | Note | Instruction manual | |
 |
16053300 | VRG801 | ESBE VRG801 Adaptor kit ESBE valves series VRG, VRH, VRB, VRS, VRP. | ESBE VRG801 Adaptor kit ESBE valves series VRG, VRH, VRB, VRS, VRP. | Series 90, CRA120, CRC120. Order separately. | |
 |
13905100 | VBF801 | ESBE VBF801 Adaptor kit ESBE valves series VBF100 - actuator series 90 | Adaptor kit VBF801 ESBE valves series VBF100 - actuator series 90 | Series 90. Order separately. | |
 |
16051300 | 900 | ESBE 900 Adaptor kit ESBE valves series MG, G, F, BIV, T, TM, H, HG. | ESBE 900 Adaptor kit ESBE valves series MG, G, F, BIV, T, TM, H, HG. | Series 90, CRA120, CRC120. Comes with the actuator or Controller. | |
 |
16053900 | 900C | ESBE 900C Adaptor kit Honeywell Centra ZR, DR, DRG, DRU (DN15 - DN50). | ESBE 900C Adaptor kit Honeywell Centra ZR, DR, DRG, DRU (DN15 - DN50). | Series 90, CRA120, CRC120, 90C*. Order separately. *The adaptor kit comes with a hand lever and for the controller series 90C this must be removed. It is not required for assembly. | |
 |
16051700 | 900CK | ESBE 900CK Adaptor kit Honeywell Centra Kompakt DRK/ZRK. | ESBE 900CK Adaptor kit Honeywell Centra Kompakt DRK/ZRK. | Series 90, CRA120, CRC120, 90C*. Order separately. *The adaptor kit comes with a hand lever and for the controller series 90C this must be removed. It is not required for assembly. | |
 |
16053600 | 900F | ESBE 900F Adaptor kit Meibes / Oventrop / Watts / BRV. | ESBE 900F Adaptor kit Meibes / Oventrop / Watts / BRV. | Series 90, CRA120, CRC120, 90C*. Order separately. *The adaptor kit comes with a hand lever and for the controller series 90C this must be removed. It is not required for assembly. | |
 |
16052600 | 900L | ESBE 900L Adaptor kit Schneider Electric TRV / TAC-TRV valves. | ESBE 900L Adaptor kit Schneider Electric TRV / TAC-TRV valves. | Series 90, CRA120, CRC120, 90C*. Order separately. *The adaptor kit comes with a hand lever and for the controller series 90C this must be removed. It is not required for assembly. | |
 |
16052500 | 900K | ESBE 900K Adaptor kit Siemens VBG31, VBI31, VBF21, VCI31. | ESBE 900K Adaptor kit Siemens VBG31, VBI31, VBF21, VCI31. | Series 90, CRA120, CRC120, 90C*. Order separately. *The adaptor kit comes with a hand lever and for the controller series 90C this must be removed. It is not required for assembly. | |
|
16051400 | 900A | ESBE 900A Adaptor kit TA VTR valves. | ESBE 900A Adaptor kit TA-VTR valves. | Series 90, CRA120, CRC120, 90C*. Order separately. *The adaptor kit comes with a hand lever and for the controller series 90C this must be removed. It is not required for assembly. | |
 |
16051500 | 900B | ESBE 900B Adaptor kit Viesmann valves DN 20-25 | ESBE 900B Adaptor kit Viesmann valves DN 20-25 | Series 90, CRA120, CRC120, 90C*. Order separately. *The adaptor kit comes with a hand lever and for the controller series 90C this must be removed. It is not required for assembly. | |
Spare parts
| Art No. | Reference | Designation | Description | Note | Instruction manual | |
 |
98180570 | MTS900 | ESBE MTS900 Shaft coupling series 90 | Shaft coupling series 90. | |
Options
| Art No. | Reference | Designation | Description | Note | Instruction manual | |
 |
98100690 | ESBE Separate auxiliary switch series 90. | Separate auxiliary switch series 90. | |
