Motorized ball valve
MBA120
- High flow capabilities
- Air bubble tight
- Anti-condensation resistor to prevent condensation
- Flexible and easy to install
Series MBA120 is a range of 2-way motorized ball valves with actuator for use in heating and cooling system. The valve is air bubble tight according to EN12266-1. The MBA120 series is available in DN15-32 and comes with different type of connections to suit most needs. The actuator is assembled on the ball valve with a metallic spigot that allows to assembly/disassembly the actuator in a secure , simple and rapid way.
Product range
MBA121, Internal thread
![MBA121.png](/storage/2561A56A4E8D1AA2961E9A0E52757992386B0AB6FCA3BBB2C076ED67F9D38BBA/e314e86db26b4d9eb61947e222289aa0/160-160-0-png.Png/media/cedf2f46e921460b908d69f494a32cbd/MBA121.png)
![MBA121 valve_front_A-01.png](/storage/96D961FE0130215E0CA225A5ABAC841EA09AFFD694B6FA3B55F9345999563AC1/fad24c89de5b4755ade9eac2595588f6/160-160-0-png.Png/media/5c7fdfc061894e6aaf78270852cf6db6/MBA121%20valve_front_A-01.png)
![MBA121 valve_side_A-01.png](/storage/8CF2E3D0FAF16143DFE61F84563B23E39BE397C1812CC66C8F0E238AE95B2E42/88fe591d0e6743ef9d38a8eedf9d42b0/160-160-0-png.Png/media/77dbe98773b3468d9c5728f072260e45/MBA121%20valve_side_A-01.png)

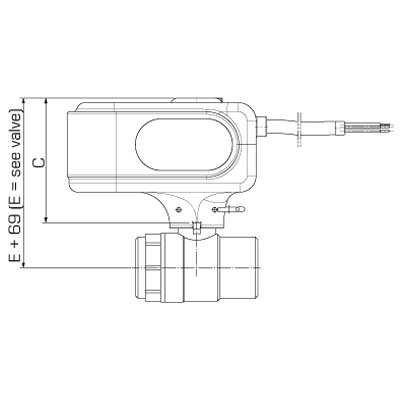

![MBA121_front_GB_A-01.png](/storage/6D6103A34E4A1D6FD2B53FACBA81B513048B8FA69787CB1DA07B26BF066150FA/8ca4662e54c7443cb56618e56907af7e/160-160-0-png.Png/media/5f4c9fd6b9224a969b655adbdcc5f960/MBA121_front_GB_A-01.png)
Art.no. | Reference | DN | Kvs | Connection A | Connection B | C [mm] | D [mm] | E [mm] | F [mm] | Weight [kg] |
43100100 | MBA121 | 20 | 45 | G ¾” | G ¾” | 34 | 68 | 25 | 39 | 0,74 |
43100200 | MBA121 | 25 | 60 | G 1” | G 1” | 41 | 82 | 29 | 43 | 0,93 |
43100300 | MBA121 | 32 | 100 | G 1¼” | G 1¼” | 43 | 86 | 34 | 48 | 1,08 |
MBA122, External thread
![MBA122.png](/storage/B2E37EE0A204B444572B0F27C9D7C2A83550EC985A562A5B16233372A594C613/6bcacf8c23da43dbb615cad9e1125d9c/160-160-0-png.Png/media/c70bb4ffe80f429c81b72879aa20a63d/MBA122.png)
![MBA122_valve_front-01.png](/storage/7A7472790E30502236FE85FF1178A374D83423A0B03BBBF1B8CA0944A11C8A66/002ebcc1bb3b4e42b5f011cb1fea900d/160-160-0-png.Png/media/04a98a8c11a8461fbbfa890718119bf4/MBA122_valve_front-01.png)
![MBA122_valve_side-01.png](/storage/CE8613A21D9B194BDF147E9C49EE1E7FF865029B2B1005652AB11FFBDBF8AE90/c0c142c4fde44c0eb4c168c01395223e/160-160-0-png.Png/media/a1672acf76f146ac8540fe1aadcb7c07/MBA122_valve_side-01.png)

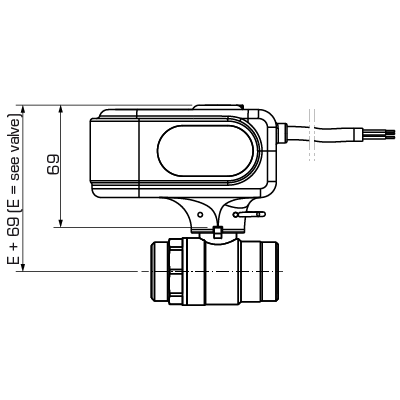

![MBA122_front_GB-01.png](/storage/FF6CB401F530DEAB170BBAD0C38872F39DAC6F572877E3A7920F4EE4B40A025A/4894323d49444d4285d8da072990faca/160-160-0-png.Png/media/49e176b0dae149218a4d72977404207a/MBA122_front_GB-01.png)
Art.no. | Reference | DN | Kvs | Connection A | Connection B | C [mm] | D [mm] | E [mm] | F [mm] | Weight [kg] |
43101100 | MBA122 | 15 | 20 | G ¾" | G ¾" | 31 | 62 | 21,5 | 35 | 0,61 |
43101200 | MBA122 | 20 | 45 | G 1" | G 1" | 34 | 72 | 25 | 38,5 | 0,72 |
43101300 | MBA122 | 25 | 60 | G 1¼" | G 1¼" | 39,5 | 82 | 29 | 42,5 | 0,91 |
43101400 | MBA122 | 32 | 100 | G 1½" | G 1½" | 36 | 86 | 34 | 47,5 | 1,10 |
MBA122, External thread with adapters
![MBA122_with adapters_rgb.png](/storage/D8A6BCDD6BDCD701978D3FF3D12C4F2A339DDE400E0E2F7D971092E7A5F47764/14a742216745400384fc2e5ba41e54cd/160-160-0-png.Png/media/004b893b768048d384e2d3ff95f0a0df/MBA122_with%20adapters_rgb.png)
![MBA122_valve adapter_front-01.png](/storage/EE08010F057293EE570FBC01B4BC95DDB1FCCE1C3CA5102FF3A20FE0A4A88E09/31dcc06b52b440c4a42d97136bc9dca5/160-160-0-png.Png/media/7837a00e6d7e459687198d39eea6011e/MBA122_valve%20adapter_front-01.png)
![MBA122_valve adapter_side-01.png](/storage/58058F7BBAD021D40D421595E171234C42967DADC88A362DB99A7A6C7758CD01/2f36a6d893294f14a4ffc8a5081b1b67/160-160-0-png.Png/media/9b99c4eba8b042ffb4186e0fa68c43fa/MBA122_valve%20adapter_side-01.png)

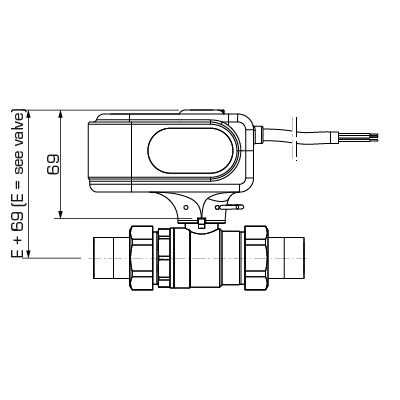

![MBA122_adapter_front_GB-01.png](/storage/4428749DFA806B15F0237D15D680EECD07EB332502CEA6192721CDC064ABF30F/d5c59415f68d477aaad6ab66344cffce/160-160-0-png.Png/media/e0b694cd49f44513a8ecbea360d3db92/MBA122_adapter_front_GB-01.png)
Art.no. | Reference | DN | Kvs | Connection A | Connection B | C [mm] | D [mm] | E [mm] | F [mm] | Weight [kg] |
43100700 | MBA122 | 15 | 20 | G ½" | G ½" | 58,5 | 118 | 21,5 | 35 | 0,73 |
43100800 | MBA122 | 20 | 45 | G ¾" | G ¾" | 65 | 133,5 | 25 | 38,5 | 0,93 |
43100900 | MBA122 | 25 | 60 | G 1" | G 1" | 73 | 149 | 29 | 42,5 | 1,24 |
43101000 | MBA122 | 32 | 100 | G 1¼" | G 1¼" | 74 | 158 | 34 | 47,5 | 1,55 |
MBA124, Internal and external thread
![MBA124.png](/storage/030D88B0AEF5981A97842F6DBE7FEA5EFC7C9571A71403196E9C19E9A36BCBBF/ba8d73a9ba2d45619744771b3fe10494/160-160-0-png.Png/media/4fa82cf1276647e590a5d19edd0d3d0c/MBA124.png)
![MBA124 valve_front_A-01.png](/storage/AA02A59B42FA812460A156AB8F263C7853DD983C236E6743842FEE0594D782EB/96d5a7dd912e471f89360c489e20b54e/160-160-0-png.Png/media/06ce33e628aa467e8c0c0b56129958d1/MBA124%20valve_front_A-01.png)
![MBA124 valve_side_A-01.png](/storage/CEB5007A406BCB49D78C12989DDEEA8C7BE2D7797DA2C8D12A1AE96AF942EB01/335ff1a2ce924913bd3d62c842bd9210/160-160-0-png.Png/media/3744199e03c24ba08b5b71897594b955/MBA124%20valve_side_A-01.png)

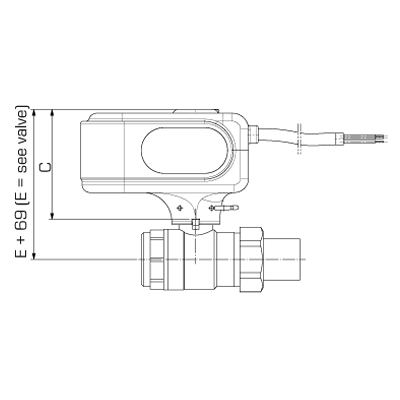

![MBA124_front_GB_A-01.png](/storage/64A098A4259345044BAAB3EE8580735C9C6EF40FE7D73DDD1331FE6CE4E03D56/b531c8f4fbf9419e99c8670a9772af31/160-160-0-png.Png/media/c08757d7fe5e45aa9248feb50c514beb/MBA124_front_GB_A-01.png)
Art.no. | Reference | DN | Kvs | Connection A | Connection B | C [мм] | D [мм] | E [мм] | F [мм] | Weight [kg] | Note | C [mm] | D [mm] | E [mm] | F [mm] |
43100400 | MBA124 | 20 | 45 | G ¾” | G ¾” | 65 | 99 | 25 | 39 | 0,83 | Connection A = Internal thread; Connection B = External thread | ||||
43100500 | MBA124 | 25 | 60 | G 1" | G 1" | 1,04 | Connection A = Internal thread; Connection B = External thread | 73 | 115 | 29 | 43 | ||||
43100600 | MBA124 | 32 | 100 | G 1¼” | G 1¼” | 1,28 | Connection A = Internal thread; Connection B = External thread | 75 | 119 | 34 | 48 |
Installation support
Documents
Name | Download |
Installation instruction MBA120 |
|
Technical data
Technical data
Pressure class: | PN 32 |
Working pressure: | 3,2 MPa |
Torque (at nominal pressure): | < 4 Nm |
Leakrate: | EN 12266-1: internal leakage rate A, Air bubble tight; EN 12266-1: external leakage rate A, Air bubble tight |
Power supply: | 230 ± 10% V AC, 50 Hz |
Power consumption: | Motor operation: 3,5 W; Anti condensation resistor: up to 5 W |
Control signal: | 2-point SPST (Singel Pole Single Throw) |
Enclosure rating: | IP44 |
Protection class: | II |
Running time 90°: | 40 seconds |
Rating auxiliary switch: | 6(1) A 230 V AC |
Torque: | 10 Nm |
Media, Heating water: | in accordance with VDI2035 |
Media, Water/Glycol mixtures: | max. 50 % (above 20% admixture, the pump data must be checked) |
Media temperature, max.: | +90 °C |
Media temperature, min.: | 0 °C |
Ambient temperature, max.: | +50 °C |
Ambient temperature, min.: | 0 °C |
Connections, Internal thread (G): | ISO 228/1 |
Connections, External thread (G): | ISO 228/1 |
Material, Valve body: | Brass CW 617N, Nickel plated |
Material, Body end: | Brass CW 617N, Nickel plated |
Material, Seat: | PTFE |
Material, O-ring: | FPM |
Material, Ball: | Brass CW 617N, Chrome plated |
Material, Washer: | PTFE |
Material, Shaft: | Brass CW 614N, Chrome plated |
Material, O-ring, shaft: | HNBR |
Material, Gasket: | Heat resistance fibre |
Material, Union: | Brass CW 617N, Nickel plated |
Material, Nut: | Brass CW 617N, Nickel plated |
Conformity
SI 2016 No. 1105 (UK)
![](/storage/F127235E0974424285122AD9A4A5FA7850E94E689F6422B3E7B290228F78A772/7fc5d351b98a483da0fd7c457f5abdb0/png/media/31c2bff4b4924e0aab82254bba7cf6ab/CE_A-01.png)
EMC 2014/30/EU
RoHS3 2015/863/EU
![](/storage/55A21277313834FAB1E219F841D50C08BB2AF449A1727894DFEDD990DAA2FD3D/6a7be66c68044f85ad8e217f6aed15bd/png/media/0751fb01742e4d329d5b2ff81ea23601/UKCA%20black%20fill.png)
SI 2016 No. 1091
SI 2012 No. 3032
![](/storage/D112415CF1FB9E5D58E7F7F5ECD1AD2EE83CCF25FE83BABCF5A3C942DA7E9D96/ae1092b9e2ff4856860ac56de770ee98/png/media/bba1d4a50094459e99aa95f483c80917/EAC_black-01.png)
![](/storage/321497FA0E48EAA3DA58BD28AAA462CD860FCCAA1D01924844C733E462B13C63/1d12233666764a75932c6c24b532b494/png/media/d751858a06804ef8b5cf7fbee2f7ca1a/UKRSEPRO.png)
![](/storage/86B29CAFD1FCBEAE1F4CFA3CBF4DC5DBCB829BCC6486F992C01F9672681B61B8/6d25dcbe4c8340b88f01efbe2702498d/png/media/f14801934e5f471fb471cfbdf08c55ea/PZH_A-01.png)
Dimensioning
Wiring
Download area
Download area
Type | Preview | Download |
Data Sheet | MBA120 |
|
Installation instruction | MBA120/MBA130 |
|
Certificate | Declaration of Conformity, MBA120 |
|
Certificate | Declaration of Conformity UKCA, MBA120 |
|
Certificate | EAC certificate (RU), MBA120 230V |
|
Certificate | Certificate of conformity UA, MBA120 |
|
Approval | PZH-certificate (PL), MBA120 |
|
Image | MBA121, internal thread, high res |
|
Image | MBA122, external thread, high res |
|
Image | MBA122, external thread with adapters, high res |
|
Image | MBA124, internal and external thread, high res |
|
2D Image | MBA121 |
|
2D Image | MBA122 |
|
2D Image | MBA122 with adapters |
|
2D Image | MBA124 |
|
3D drawing (stp file) | MBA121, DN20 |
|
3D drawing (stp file) | MBA121, DN25 |
|
3D drawing (stp file) | MBA121, DN32 |
|
3D drawing (stp file) | MBA122, DN20 (43101200) |
|
3D drawing (stp file) | MBA122, DN20 with adapters (43100800) |
|
3D drawing (stp file) | MBA124, DN20 |
|
3D drawing (stp file) | MBA124, DN25 |
|
3D drawing (stp file) | MBA124, DN32 |
|
