Motorized ball valve
MBA130
- Air bubble tight
- Auxiliary switch included
- Anti-condensation resistor to prevent condensation
- Flexible and easy to install
Series MBA130 is a range of 3-way motorized ball valves with actuator for use in heating and cooling system. The valve is air bubble tight according to EN12266-1. The MBA130 series is available in DN20-25 and comes with different type of connections to suit most needs. The actuator is assembled on the ball valve with a metallic spigot that allows to assembly/disassembly the actuator in a secure , simple and rapid way.
Product range

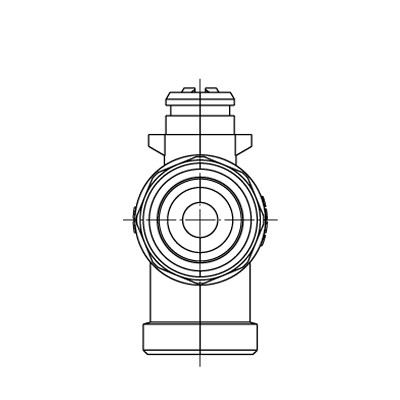

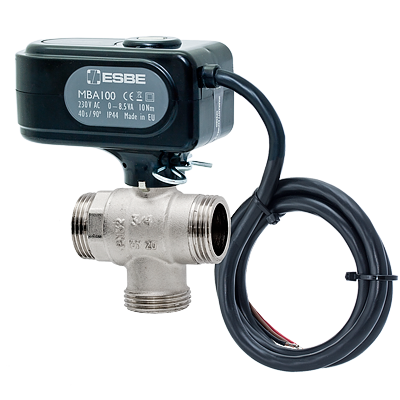

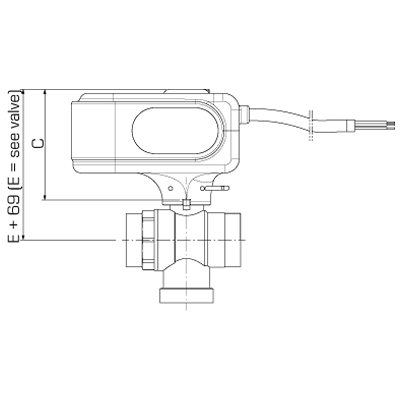

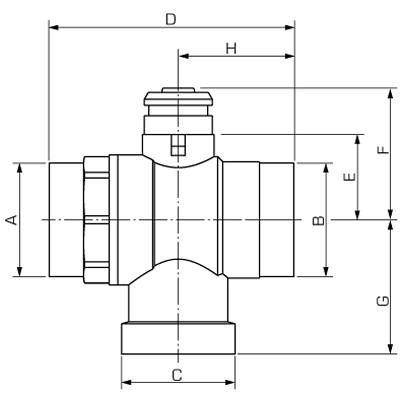

MBA132, External thread
![MBA132.png](/storage/522C78613F7D68AF7EF1A5F08D5AA78EEEAB0834A1D6B8D553754AF7BC1EE22B/b505b22665ae4302b87ba0fb2e69cf78/160-160-0-png.Png/media/8f3f7287cee24417bd7ce527e6bed04a/MBA132.png)
![MBA132 valve_front_A-01.png](/storage/29CC08FE27CF6A8BB93649B7500D2D96A97B0170C37143BC963F559EB7EBD70C/34b0b2a9b60b4bf591913b8f6eacf9dd/160-160-0-png.Png/media/d35957a6051743cb9a788bc304864441/MBA132%20valve_front_A-01.png)
![MBA132 valve_side_A-01.png](/storage/8C7F4C3E51FA2B1440A3219BD0EEA4C0F7AB7B18244F9A9DA97BFC2358281CA2/d106be9177b443d1bd138c0aab84c35d/160-160-0-png.Png/media/52e63a7c187240b2a541929d3e38590a/MBA132%20valve_side_A-01.png)
![MBA132_front_GB_A-01.png](/storage/0A8326097889F3627F050AE79CA35A21DC6FBB69E95DF74B9710FD68B8845C3A/3967fb3e2fe049c58758fbff2f36ce0f/160-160-0-png.Png/media/44e261a93ff04f49b90b090ae87eed55/MBA132_front_GB_A-01.png)
Art.no. | Reference | DN | Kvs | Connection A | Connection B | Connection C | D [mm] | E [mm] | F [mm] | G [mm] | H [mm] | Weight [kg] |
43102500 | MBA132 | 20 | 9,6 | G 1" | G 1" | G 1" | 72 | 25 | 39 | 39 | 34 | 0,76 |
43102600 | MBA132 | 25 | 11,3 | G 1¼” | G 1¼” | G 1¼” | 82 | 29 | 43 | 42 | 40 | 0,99 |

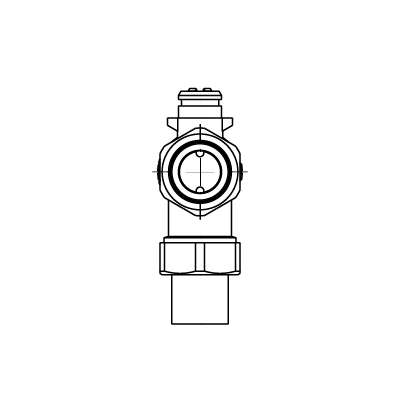

MBA132, External thread with adapters
![MBA132_With adapters.png](/storage/634AFDF8E1B761A67EA78398A577156E2B9325D0D07918607E3960C59786255A/b5e649148a024e23ab06ac7de3e401c6/160-160-0-png.Png/media/105ab5b067ae42e48cc5c4308d294d3b/MBA132_With%20adapters.png)
![MBA132_valve adapter_front-01.png](/storage/1B14897C2CF54459F8842E95A5B4761978A381AC988829E9AF7994003E51903E/0cb1b439b46e4bc1958d19388265e490/160-160-0-png.Png/media/04b2bdff22914b79a436eccb54c82a7a/MBA132_valve%20adapter_front-01.png)
![MBA132_valve adapter_side-01.png](/storage/8F0C28241B4BA95F4C25EEFB37A82DDF59E5F6ABE57698D72E3FE06455E04AFF/c4e6827e49524dcb8863fada855e3fd6/160-160-0-png.Png/media/bc745391e36d41b28df95e4c7c7210b0/MBA132_valve%20adapter_side-01.png)
![MBA132 adapter_front_GB-01.png](/storage/196B271C0BACEE935C7FA8C8E20CAD19A4E0822766808754F10BBC60E66E7D29/82d71202830941569ca05cc885c829e8/160-160-0-png.Png/media/c2d6fd0a41ff4495be6f31876f70127e/MBA132%20adapter_front_GB-01.png)

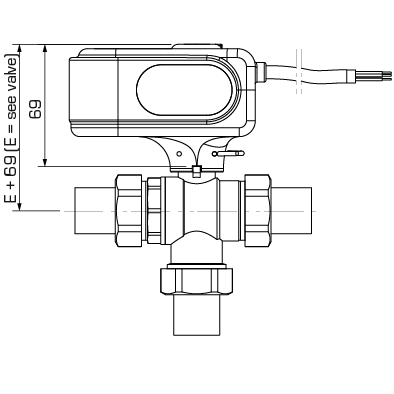

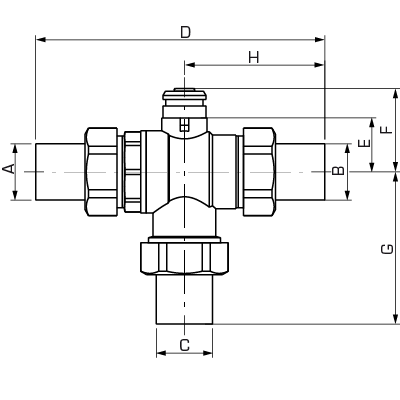

Art.no. | Reference | DN | Kvs | Connection A | Connection B | Connection C | D [mm] | E [mm] | F [mm] | G [mm] | H [mm] | Weight [kg] |
43102700 | MBA132 | 20 | 9,6 | G ¾" | G ¾" | G ¾" | 134 | 25 | 38,5 | 70 | 65 | 1,07 |
43102800 | MBA132 | 25 | 11,3 | G 1" | G 1" | G 1" | 149 | 29 | 42,5 | 75,5 | 73 | 1,46 |

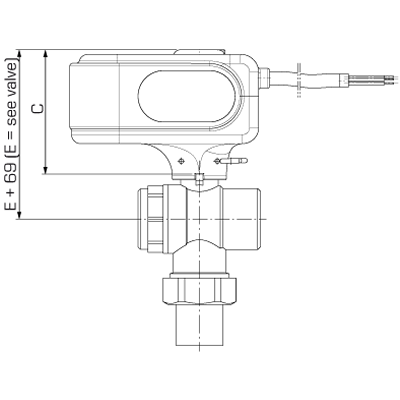

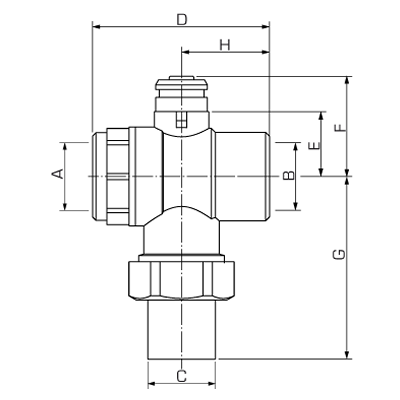

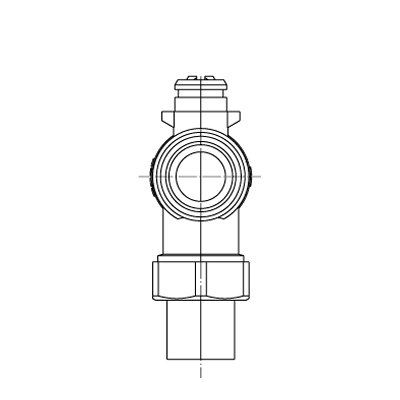

MBA135, Internal, internal and external thread
![MBA135.png](/storage/ED9942F67B76188B128F584AD082E4160048ABEAFCE6E1281390CEC41C192A46/d329b215af704db0a2c9b0659ec8a4d4/160-160-0-png.Png/media/2ebc34528db6402f9c6b7bfeaeea9d95/MBA135.png)
![MBA135 valve_front_A-01.png](/storage/A25523DDA12BF8A616715C7EA4E4C0FA292E1B941BB2D02E9732329EF69A0EDC/f0ac3d65f4234896a6e6146484355e5e/160-160-0-png.Png/media/8fea9e5b16444ec495843790fb73092d/MBA135%20valve_front_A-01.png)
![MBA135 valve_side_A-01.png](/storage/48ECA45D81436EA1E165DBDF4F1EFFA4409A885DB52A0F6650422333217D3519/c82708e01b804c42981755d60b715309/160-160-0-png.Png/media/d292b2d013fe4b66834d5fafe640f527/MBA135%20valve_side_A-01.png)
![MBA135_front_GB_A-01.png](/storage/4E83698791C1137816FA453CDE4F7A787760A3EF02BA118D75A02F18F353BF34/da7baf77ce6c49aabd1a4caaee257232/160-160-0-png.Png/media/c1ddd6dc24764bea9927563237cc26f9/MBA135_front_GB_A-01.png)
Art.no. | Reference | DN | Kvs | Connection A | Connection B | Connection C | D [mm] | E [mm] | F [mm] | G [mm] | H [mm] | Weight [kg] | Note |
43102100 | MBA135 | 20 | 9,6 | G ¾” | G ¾” | G ¾” | 68 | 25 | 39 | 70 | 34 | 0,87 | Connection A, B = Internal thread; Connection C = External thread |
43102200 | MBA135 | 25 | 11,3 | G 1” | G 1” | G 1” | 81 | 29 | 43 | 76 | 41 | 1,14 | Connection A, B = Internal thread; Connection C = External thread |
Technical data
Technical data
Pressure class: | PN 32 |
Working pressure: | 3,2 MPa |
Torque (at nominal pressure): | < 4 Nm |
Leakrate: | EN 12266-1: internal leakage rate B, Air bubble tight; EN 12266-1: external leakage rate A, Air bubble tight |
Power supply: | 230 ± 10% V AC, 50 Hz |
Power consumption: | Motor operation: 3,5 W; Anti condensation resistor: up to 5 W |
Control signal: | 2-point SPST (Singel Pole Single Throw) |
Enclosure rating: | IP44 |
Protection class: | II |
Running time 90°: | 40 s |
Rating auxiliary switch: | 6(1) A 230 V AC |
Torque: | 10 Nm |
Media, Heating water: | in accordance with VDI2035 |
Media, Water/Glycol mixtures: | max. 50 % (above 20% admixture, the pump data must be checked) |
Media temperature, max.: | +90 °C |
Media temperature, min.: | 0 °C |
Ambient temperature, max.: | +50 °C |
Ambient temperature, min.: | 0 °C |
Connections, Internal thread (G): | ISO 228/1 |
Connections, External thread (G): | ISO 228/1 |
Material, Valve body: | Brass CW 617N, Nickel plated |
Material, Body end: | Brass CW 617N, Nickel plated |
Material, Seat: | PTFE |
Material, O-ring: | FPM |
Material, Ball: | Brass CW 617N, Chrome plated |
Material, Washer: | PTFE |
Material, Shaft: | Brass CW 614N, Chrome plated |
Material, O-ring, shaft: | HNBR |
Material, Gasket: | Heat resistance fibre |
Material, Union: | Brass CW 617N, Nickel plated |
Material, Nut: | Brass CW 617N, Nickel plated |
